3dB Beamwidth
5.0 degrees
Additional Features

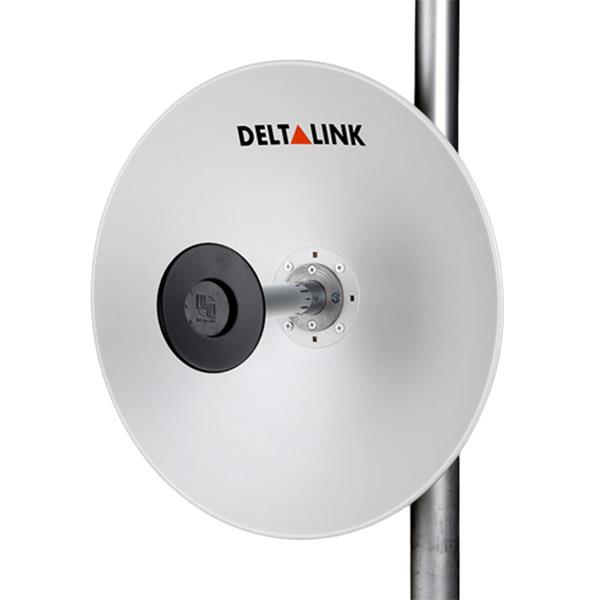

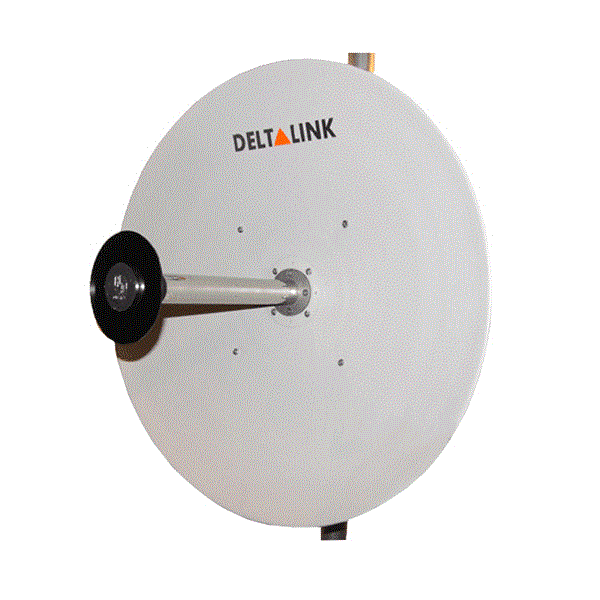

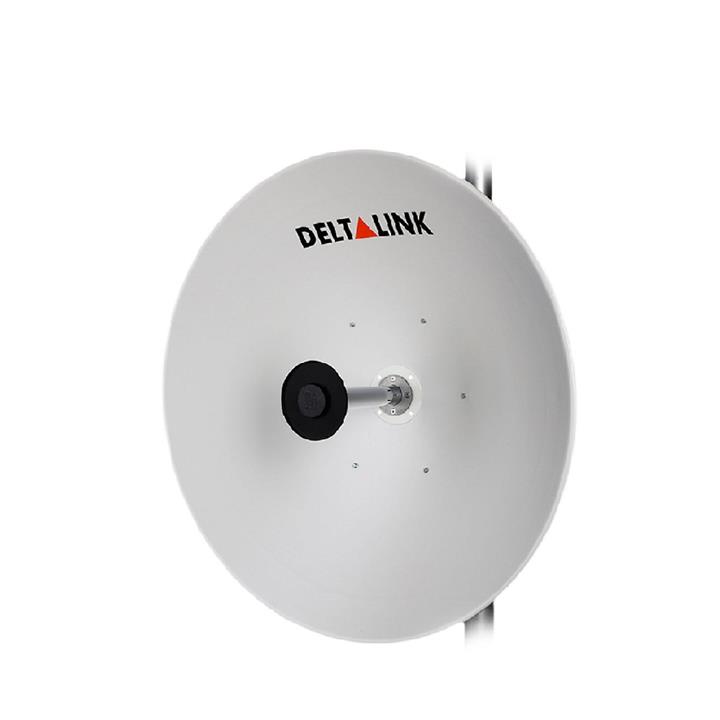

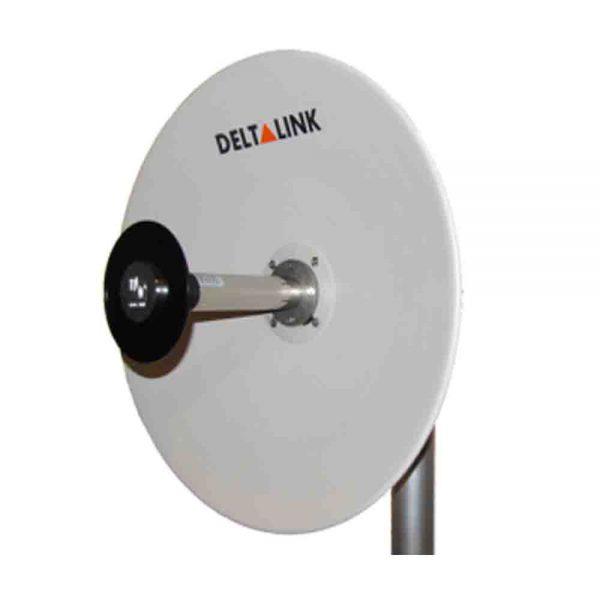

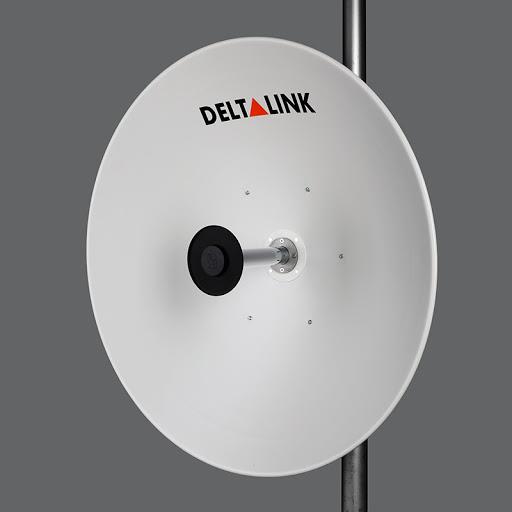

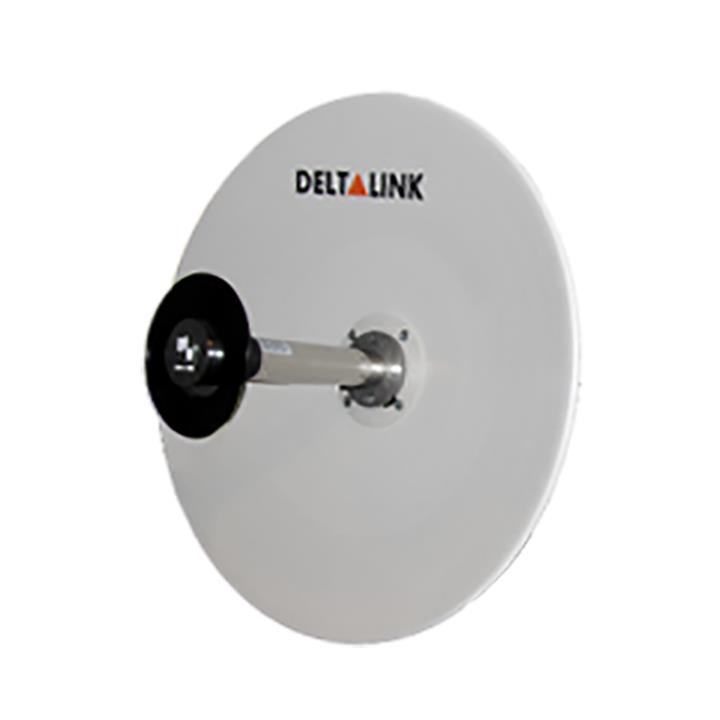

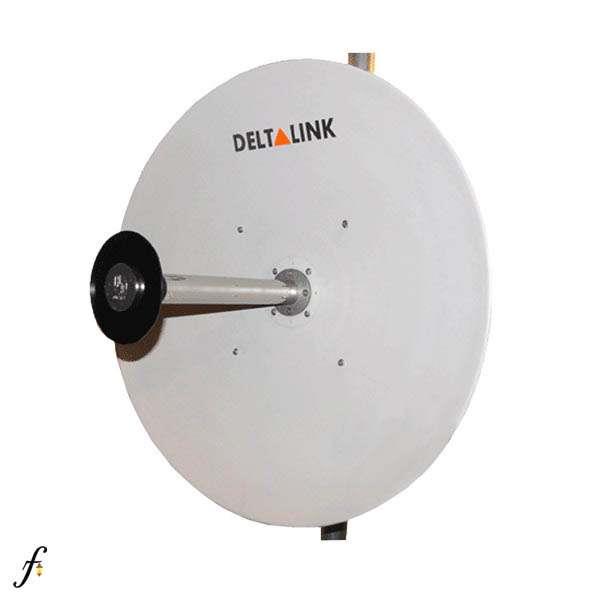

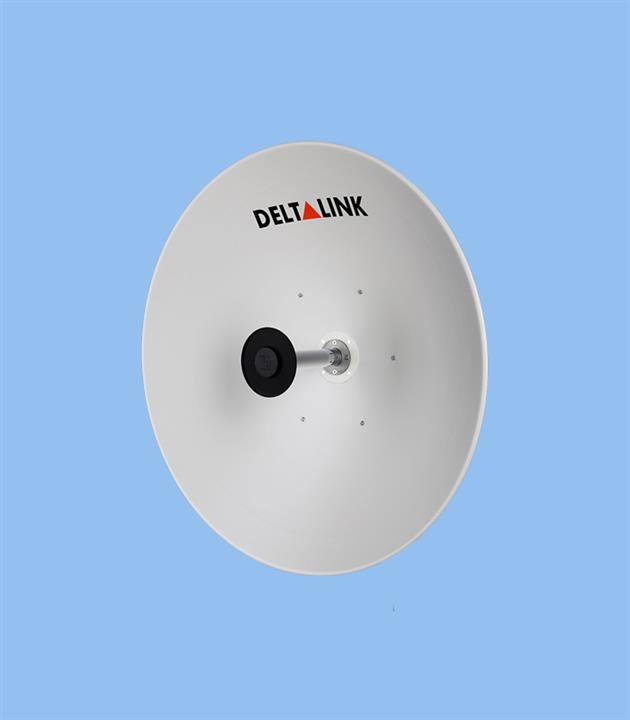

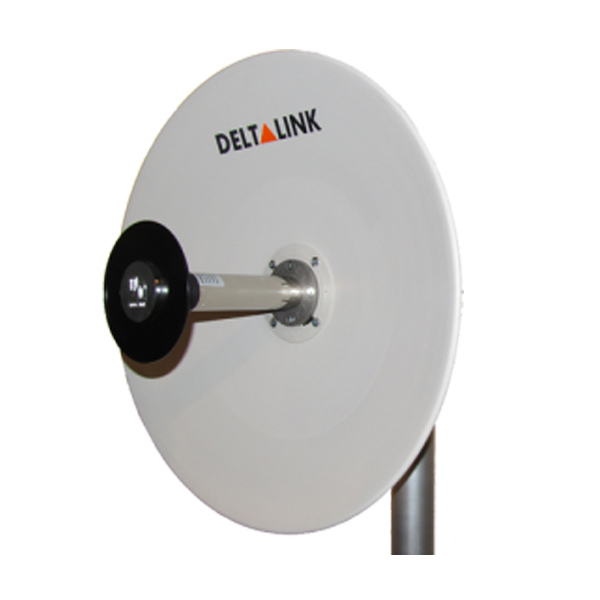

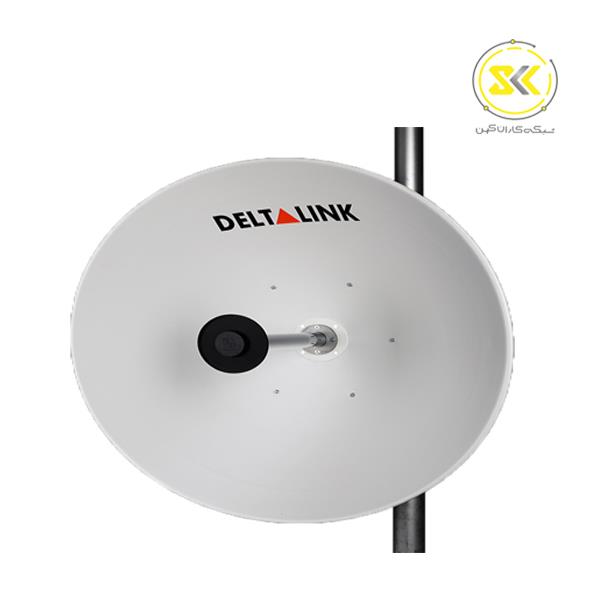

Broadband dual polarized Antenna
Connector
2 x N-male
Cross polarization
-25 dB (max), -32 (typ)
Frequency Range
4800 - 6100 MHz
Fron to Back Ratio
-40 dB
Gain
27 dBi
Material
Aluminum, ABS

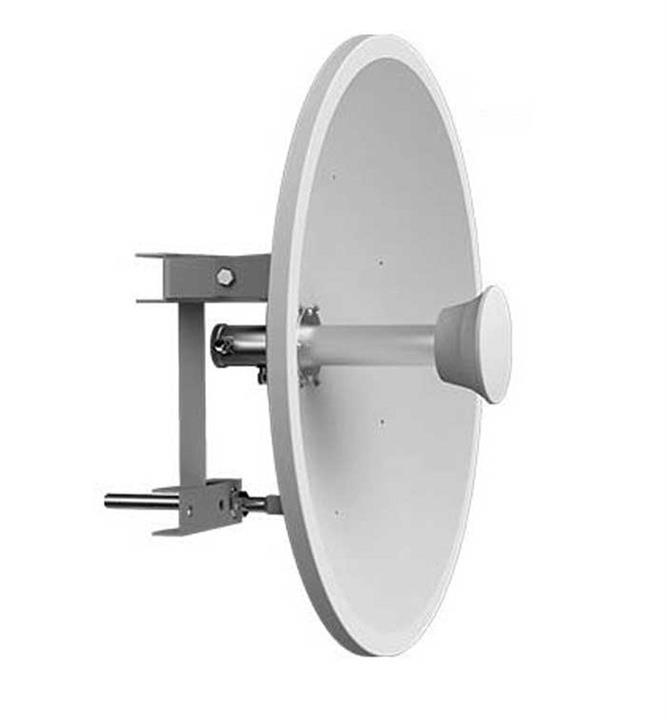

Mounting Kit
Included/Pole Mount
OPERATING TEMPERATURE
-50C to 70C
Polarization
Vertical and Horizontal
Port-to-Port Isolation
-32 dB (max), -45 (typ)
Sidelobes
ETSI EN 302.326-3 DN1-DN5
Size
550mm x550mm x 350 mm
VSWR
1.4:1(typ)
Weight (Mounting Included)
3.4 Kg
Wind Load(Survival)
200 km/h
